Adhesive Backed Adjustable Cable Clamp

Adhesive Backed Adjustable Cable Clamp

Novoflex Adhesive Backed Adjustable Cable Clamp is a one piece pressure sensitive adhesive clamp designed to reduce the time spent on electrical and electronic wiring installation and to provide a system which is absolutely foolproof, simple, safe and permanent in operation. It is widely used for securing wires and cables, or fixing and holding capacitors and electronic components of various sizes, diameters and shapes. The Ladder style fastening method can be released and easily refastened. It can be mounted in two ways, using adhesive tape backing or screw – in.
Material: Nylon 6 (Polyamide)
Flammability Rating: UL94 V-2, Resistant to Fungus, Corrosion, and most mild acids.
Standard Colour : Natural White.
Operating Temperature : -25° C to +85° C
Storage Conditions : To be stored in a cool, dark, dry place away from sunlight in a sealed condition.
Example Applications : Telecoms equipment, switchgear and control cabinets.

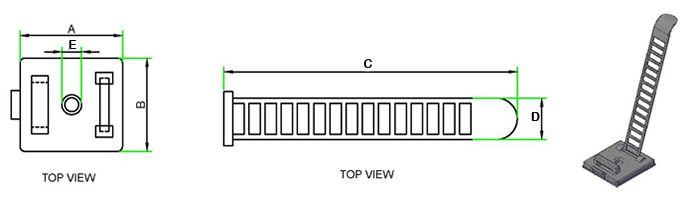

adhesive-backed-adjustable-cable-clamp-diagram

SKU: ACC1 (A), ACC1 (S), ACC2 (A), ACC2 (S) Category:

NOVOFLEX - Adhesive Backed Adjustable Cable Clamp

Novoflex Part No. Plate Length (A) - mm Plate Width (B) - mm Ladder Length (C) - mm Ladder Width (D) - mm Screw Hole Dia (E) - mm Cable Dia Range - mm Mounting Method Standard Packing (Nos.) Quantity #
ACC 1 (A) 30 21 85 12 3.6 5.0 - 21.0 Adhesive 100
ACC 1 (S) 30 21 85 12 3.6 5.0 - 21.0 Screw 100
ACC 2 (A) 30 21 125 12 3.6 5.0 - 35.0 Adhesive 100
ACC 2 (S) 30 21 125 12 3.6 5.0 - 35.0 Screw 100
Download PDF

Description

Installation Instruction

Surface Preparation:

For the best result, Novoflex adhesive mounts should be applied to the clean, dry, grease-free surface. It is recommended that for each individual application a solvent or cleanser be used to thoroughly prepare the surface for mount installation to obtain the best result the following are recommended guidelines:

Proper Installation Techniques:

Pressure Sensitive Adhesive Mounts
For proper installation of adhesive mounts with foam tape, simply remove the release liner from the foam adhesive and place the mount in the desired location. Apply firm pressure to the mount to ensure proper adhesion. Avoid touching the adhesive prior to placing the mount on the surface.
