Adhesive Backed Cable Hanger Clip

Adhesive Backed Cable Hanger Clip

Novoflex Adhesive Backed Cable Hanger Clip is designed to secure cables or harnesses where fixing holes are impractical; the snap in action secures the cables and takes minimum assembly time. Installation is easy – just peel off the release paper and press firmly on any clean & smooth surface.
Material: Nylon 6 (Polyamide)
Flammability Rating: UL94 V-2, Resistant to Fungus, Corrosion, and most mild acids.
Standard Colour : Natural White.
Operating Temperature : -25° C to +85° C
Storage Conditions : To be stored in a cool, dark, dry place away from sunlight in a sealed condition.
Example Applications : Telecoms equipment, switchgear and control cabinets.

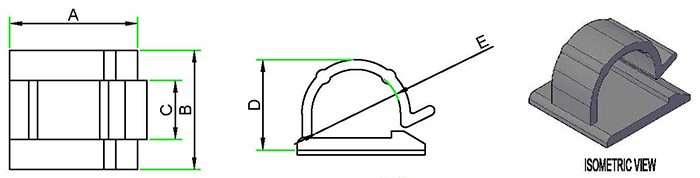

adhesive-backed-cable-hanger-clip-diagram


NOVOFLEX - Adhesive Backed Cable Hanger Clip

Novoflex Part No. Length (A) - mm Width (B) - mm Strap Width (C) - mm Height (D) - mm Inner Dia (E) - mm Standard Packing (Nos.) Quantity #
CKA 5 26.6 24.8 12.5 18.8 19.5 100
Download PDF

Description

Installation Instruction

Surface Preparation:

For the best result, Novoflex adhesive mounts should be applied to the clean, dry, grease-free surface. It is recommended that for each individual application a solvent or cleanser be used to thoroughly prepare the surface for mount installation to obtain the best result the following are recommended guidelines:

Proper Installation Techniques:

Pressure Sensitive Adhesive Mounts
For proper installation of adhesive mounts with foam tape, simply remove the release liner from the foam adhesive and place the mount in the desired location. Apply firm pressure to the mount to ensure proper adhesion. Avoid touching the adhesive prior to placing the mount on the surface.
