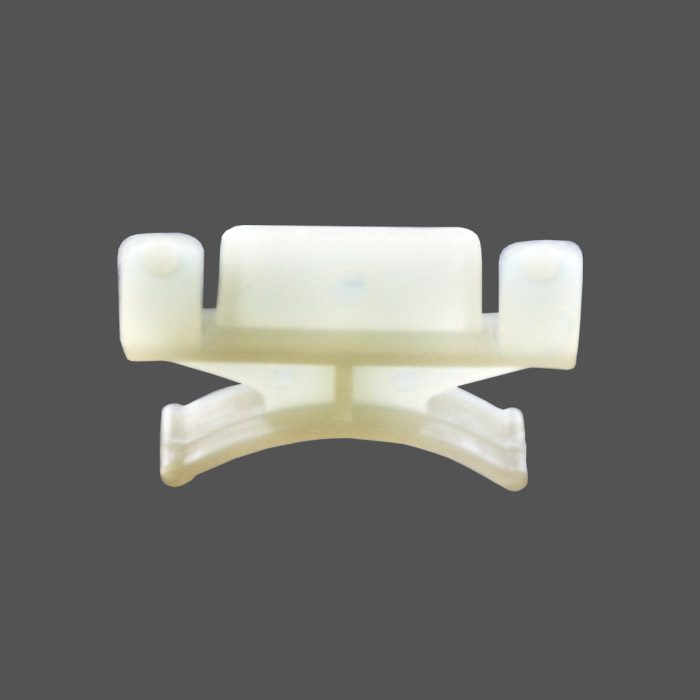

Novoflex PCB Puller is designed to allow close mounting of PCB as is required in high density packaging. It snaps into two 3.2 diameter pre-drilled holes, 1.6 mm thick PCB without the aid of pins or rivets. Its curved tab provides fingertip grip for board insertion and removal.
Material: Nylon 6 (Polyamide). Resistant to Fungus, Corrosion, and most mild acids.
Flammability Rating: UL94 V-2
Standard Colour: Natural White.
Operating Temperature: -25° C to +85° C.
Storage Conditions: To be stored in a cool, dark, dry place away from sunlight in a sealed condition.
Example Applications: Automobiles, Railways, Aviation, Power Plants, Telecom, Consumer Durables, Retail Stores, Computers & Networking, Electric Metering, Electronics, Control Panels and many more.
