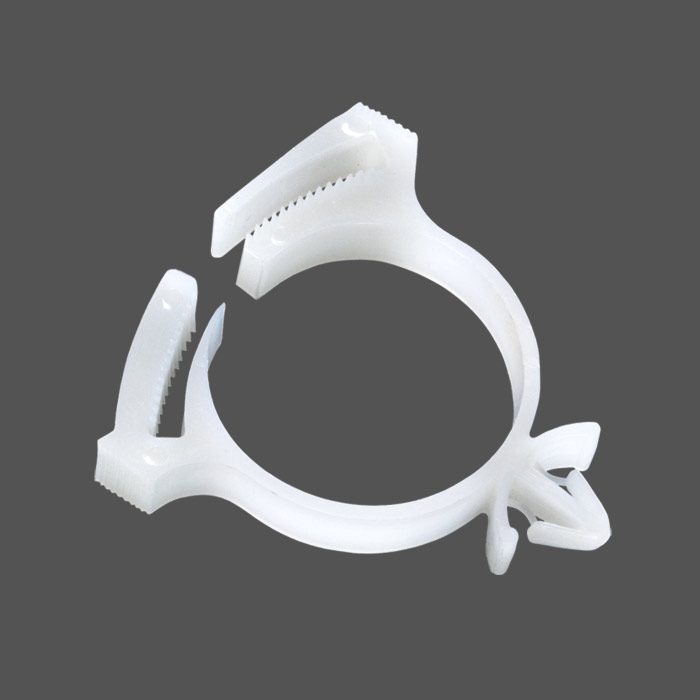

Novoflex Push Fit Snapper Clip is a one piece non-conductive, fool proof holding device for fixing of Can type aluminium electrolytic capacitor which can be fitted easily and quickly. For application, just position it on the Capacitor and press the jaws together. For maximum tightness a plier can be used to give that firmness and vibration resistance. The capacitor holder can be released and reused multiple times.
Material: Nylon 6 (Polyamide). Resistant to Fungus, Corrosion, and most mild acids.
Flammability Rating: UL94 V-2
Standard Colour: Natural White
Suitable For Cable Dia: 25 mm to 30 mm
Suitable For Push Hole Dia: 7.0 mm ±0.2 mm
Suitable For Chassis Thickness: 1 mm to 3 mm
Operating Temperature: -25° C to +85° C
Storage Conditions: To be stored in a cool, dark, dry place away from sunlight in a sealed condition.
Example Applications: Automobiles, Railways, Aviation, Ship Building, Power Plants, Telecom, Consumer Durables, Retail Stores, Electric Metering, Electronics, Control Panels, New Project Installations and many more.
