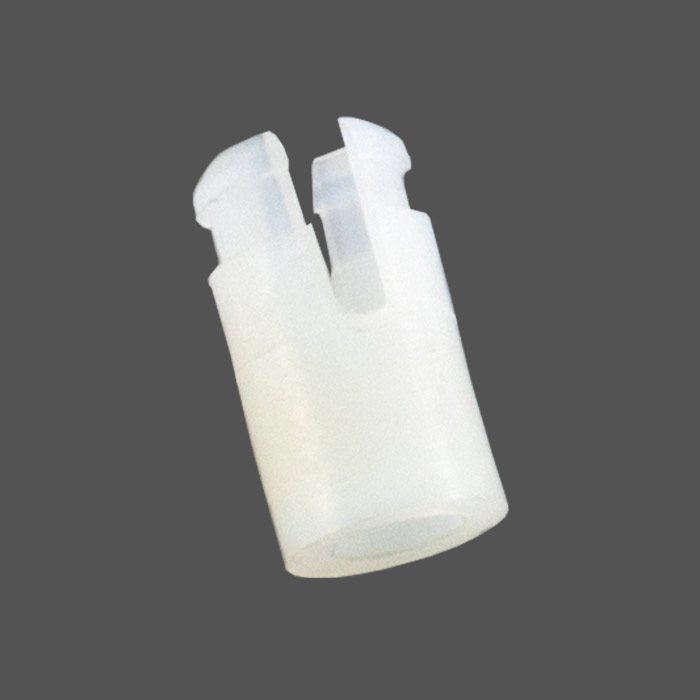

Novoflex Self Retaining Spacer is designed to insulate the head of the screw from the PCB while providing desired spacing between PCB and chassis. The PCB mount head snaps in to maintain spacing even when the screw is removed.
Material: Nylon 6 (Polyamide). Resistant to Fungus, Corrosion, and most mild acids.
Flammability Rating: UL94 V-2
Standard Colour: Natural White.
Operating Temperature: -25° C to +85° C
Storage Conditions: To be stored in a cool, dark, dry place away from sunlight in a sealed condition.
Example Applications: Automobiles, Railways, Aviation, Power Plants, Telecom, Consumer Durables, Retail Stores, Electric Metering, Electronics, Control Panels, New Project Installations and many more.
